A2A surface starter

Clone the A2A Vertex AI sample agent, deploy it to Vertex AI Agent Engine, configure an Agent Gateway A2A surface with the deployment endpoint, and validate end-to-end A2A messaging.

This guide uses the A2A Vertex AI sample agent, a currency exchange agent built with Google ADK and deployed to Vertex AI Agent Engine. Routing it through an Agent Gateway A2A surface establishes a governed control point for all A2A messaging.

By the end, you will have:

A deployed Vertex AI A2A agent with a live messaging endpoint.
An Agent Gateway A2A surface configured to route traffic to it.
A validated A2A client call path both directly to Vertex AI and through Agent Gateway.

Prerequisites

Python 3.10 or higher.
Google Cloud account with billing enabled.
gcloud CLI installed and configured.
git installed.
Access to the Agent Gateway dashboard with permission to create and edit surfaces.

Steps

Clone the sample project

git clone https://github.com/affinidi/affinidi-labs-tgw-get-started.git
cd affinidi-labs-tgw-get-started/a2a-vertex-agent

The a2a-vertex-agent directory contains a currency exchange agent built with Google ADK, along with the deployment scripts and A2A client used throughout this guide.

Set up the Python environment

python -m venv venv
source venv/bin/activate  # macOS/Linux — use venv\Scripts\activate on Windows
pip install -r requirements.txt

Configure environment variables

Copy the environment template:

cp .env.example .env

Edit .env and set your values:

GOOGLE_CLOUD_PROJECT=your-project-id
GOOGLE_CLOUD_LOCATION=us-central1
STAGING_BUCKET=gs://your-project-id-staging
AGENT_MODEL=gemini-2.0-flash

GOOGLE_CLOUD_PROJECT: your real project ID.
STAGING_BUCKET: created automatically during deployment if it does not exist.
GOOGLE_CLOUD_LOCATION: keep us-central1 unless you have a specific regional requirement.

Authenticate with Google Cloud

# Login to Google Cloud
gcloud auth login

# Set default project
gcloud config set project your-project-id

# Setup application default credentials for local development
gcloud auth application-default login

Run local tests

./run.sh

The script sets up the environment if needed and runs two tests: agent card validation and a message send test. A successful run confirms the agent is correctly wired before you deploy.

Expected output:

============================================================
TEST 1: handle_authenticated_agent_card
============================================================
Agent Card:
  Name: Currency Exchange Agent
  Description: An agent that can provide currency exchange rates
  Skills: get_exchange_rate

============================================================
TEST 2: on_message_send
Query: What is the exchange rate from USD to EUR today?
============================================================
Response: The current exchange rate from USD to EUR is...

Enable required Google Cloud APIs

gcloud services enable aiplatform.googleapis.com
gcloud services enable storage-api.googleapis.com
gcloud services enable cloudbuild.googleapis.com

Billing must be active on your project before deployment. If you have not yet enabled billing, see Enable billing for a project. Free trial credits are consumed first if available.

To enable the APIs through the browser instead, open APIs & Services in the Google Cloud Console and search for each API name.

Deploy the agent to Vertex AI

Recommended:

./deploy.sh

Direct:

python deploy.py deploy

Deployment flow performs:

Vertex AI initialization with your project settings.
Code/dependency packaging.
Staging bucket creation if missing.
Agent Engine deployment (typically around 5 minutes).
Persisted deployed resource name in .deployed_resource_name.

Expected output shape:

Initialized Vertex AI  project=your-project-id  location=us-central1
Staging bucket: gs://your-project-id-staging

Deploying 'a2a-currency-exchange-agent' via A2aAgent (~5 minutes)...

Deployed successfully!
Resource name: projects/.../locations/us-central1/reasoningEngines/...
Saved to: .deployed_resource_name

A2A Endpoints:
Agent Card URL : https://us-central1-aiplatform.googleapis.com/v1beta1/projects/your-project-id/locations/us-central1/reasoningEngines/.../a2a/v1/card
Messaging URL  : https://us-central1-aiplatform.googleapis.com/v1beta1/projects/your-project-id/locations/us-central1/reasoningEngines/.../a2a/v1/message:send

Copy the Messaging URL. You will paste it into the Agent Gateway surface in the next step.

Lifecycle helpers:

# List deployments
./deploy.sh list
python deploy.py list

# Delete deployed agent
./deploy.sh delete
python deploy.py delete

Create an Agent Gateway A2A surface

Have the Messaging URL from the deployment output ready. You will paste it into this step.

Open Surfaces in the Agent Gateway dashboard.
Select Add Surface.

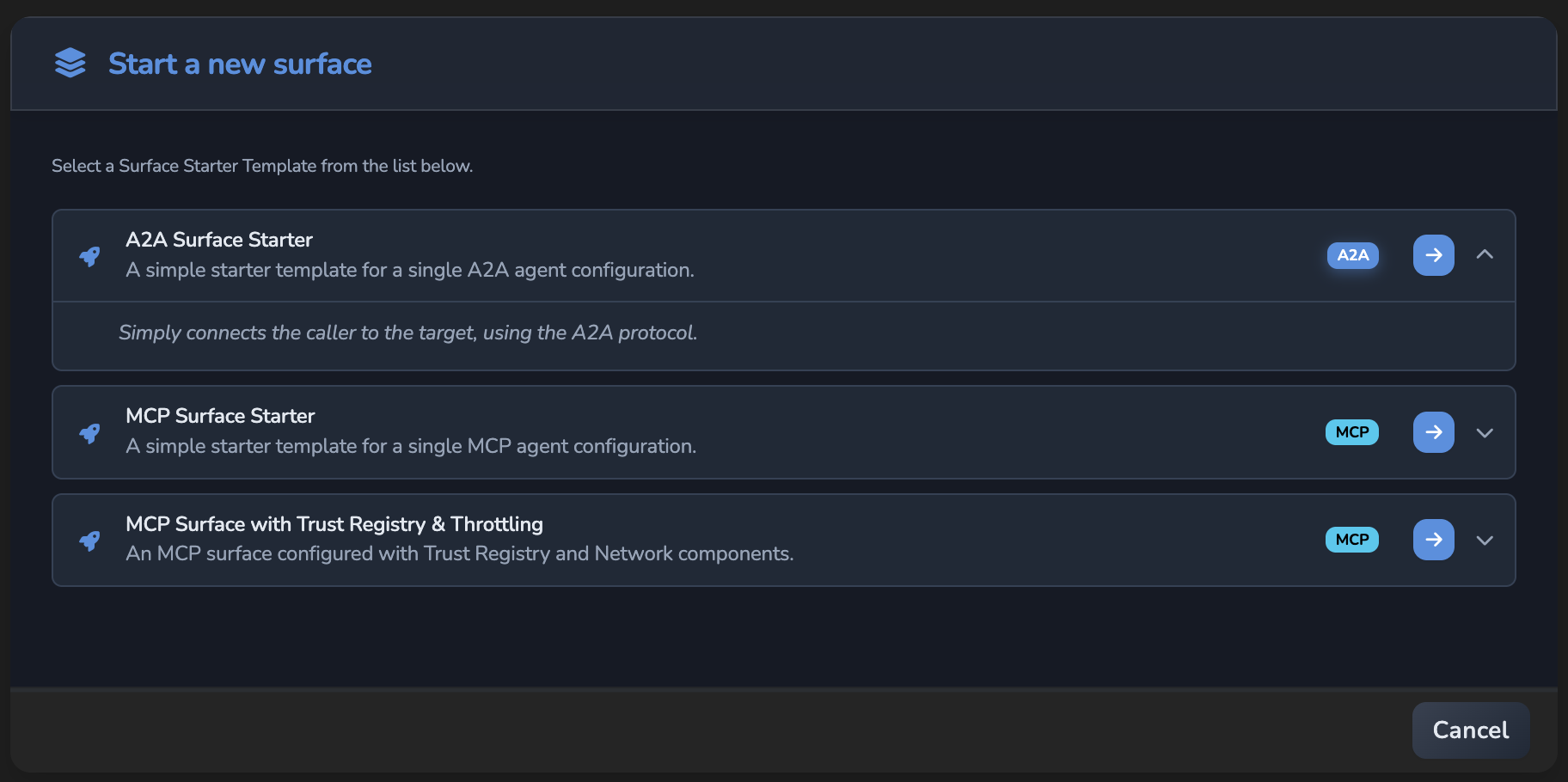

In Start a new surface, select the A2A Surface Starter template.
Update the generated Name in the Surface tab if needed.

A2A Vertex surface starter - select template

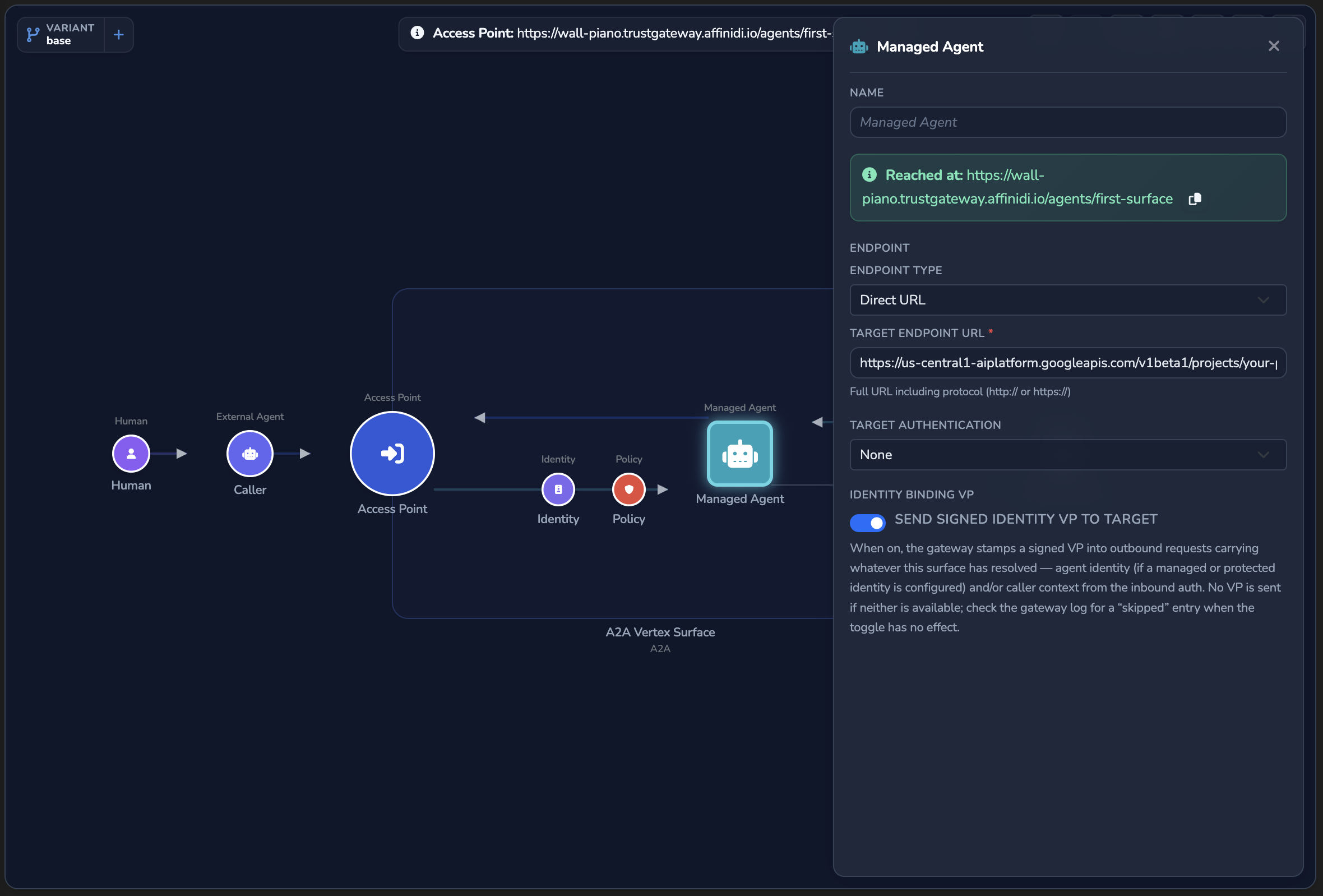

The canvas opens with a Surface container, a Managed Agent node, and an Access Point node. Elements with red outlines still require configuration.

Select the Managed Agent node and set Target Endpoint URL to the Messaging URL from the deployment output:

https://us-central1-aiplatform.googleapis.com/v1beta1/projects/your-project-id/locations/us-central1/reasoningEngines/<ENGINE_ID>/a2a/v1/message:send

A2A Vertex surface starter - managed agent

Select the Access Point node and note the Channel Route shown at the top of the panel. You will pass this URL to test.sh in the next step.
Open the Elements tab and confirm no red outlines remain on any node.
Select the green checkmark button (tooltip: Create surface) to save.

Test end-to-end

Use the Channel Route URL noted from the Access Point node in the previous step.

First, test a direct call to Vertex AI to confirm the deployment is working:

./test.sh

Then, route traffic through Agent Gateway using the Channel Route URL noted in the previous step:

./test.sh <CHANNEL_ROUTE_URL>

The base_url override routes only A2A messaging traffic through Agent Gateway. The management API call (agent_engines.get) continues going directly to Vertex AI, keeping deployment metadata authoritative.

Expected output (via Agent Gateway):

============================================================
  A2A SDK Client — Currency Exchange Agent
============================================================
  Base URL : <CHANNEL_ROUTE_URL>

[1] Fetching remote agent card...
  Name   : Currency Exchange Agent
  URL    : https://us-central1-aiplatform.googleapis.com/v1beta1/projects/.../a2a/v1
  URL (override) : <CHANNEL_ROUTE_URL>

[2] Building A2A SDK client...
  A2A client ready.

[4] Sending messages via A2A SDK
  You   : What is the USD to INR exchange rate?
  Agent : The current USD to INR exchange rate is approximately 84.5.

Production operating guidance

Use this pattern when customers need one or more of the following:

Consistent policy and identity controls across multiple agent backends.
A single operational control point for A2A traffic.
Observability and troubleshooting at the gateway boundary.

Recommended topology

Caller agent/client sends A2A message to Agent Gateway surface route.
Access point validates and routes the request.
Target endpoint forwards to the deployed Vertex A2A agent.
Response path returns through the same gateway route for consistent telemetry and policy enforcement.

Production readiness checklist

Separate projects/environments for dev, stage, and prod.
Surface-level source authentication configured for your trust boundary.
OPA policy controls enabled for route-level governance.
Logging/metrics exported from the gateway and monitored.
Clear rollback path for both deployment (deploy.py delete) and surface config updates.

Common operating model

Keep agent implementation lifecycle in Vertex AI.
Keep runtime access/policy/routing controls in Agent Gateway.
Use A2A client base_url override to switch between direct and governed path for testing, canaries, and incident triage.

Troubleshooting

Symptom	Likely cause	Fix
`403` or auth errors when routing through Agent Gateway	Surface authentication or policy is denying the call.	Check surface source authentication settings and policy rules, then retry with required credentials.
`404` when routing through Agent Gateway	Channel Route in the Access Point node does not match the URL passed to `test.sh`.	Open the surface in the dashboard, check the Channel Route in the Access Point panel, and use that exact URL.
Deployment fails before Agent Engine creation	Billing not enabled or required APIs are disabled.	Enable billing and confirm Vertex AI, Cloud Storage, and Cloud Build APIs are enabled.
Local tests pass but remote tests fail	`.deployed_resource_name` missing or stale.	Re-run deployment and confirm resource name file is updated.
Runtime cannot reach target	Incorrect target endpoint or network reachability issue.	Validate target endpoint URL from the gateway runtime environment and confirm DNS/TLS reachability.
