Restrict surface access with API key authentication

Add a Caller Context element and a Rate Limit to an A2A or MCP surface so only callers with a valid API key can reach your managed agent.

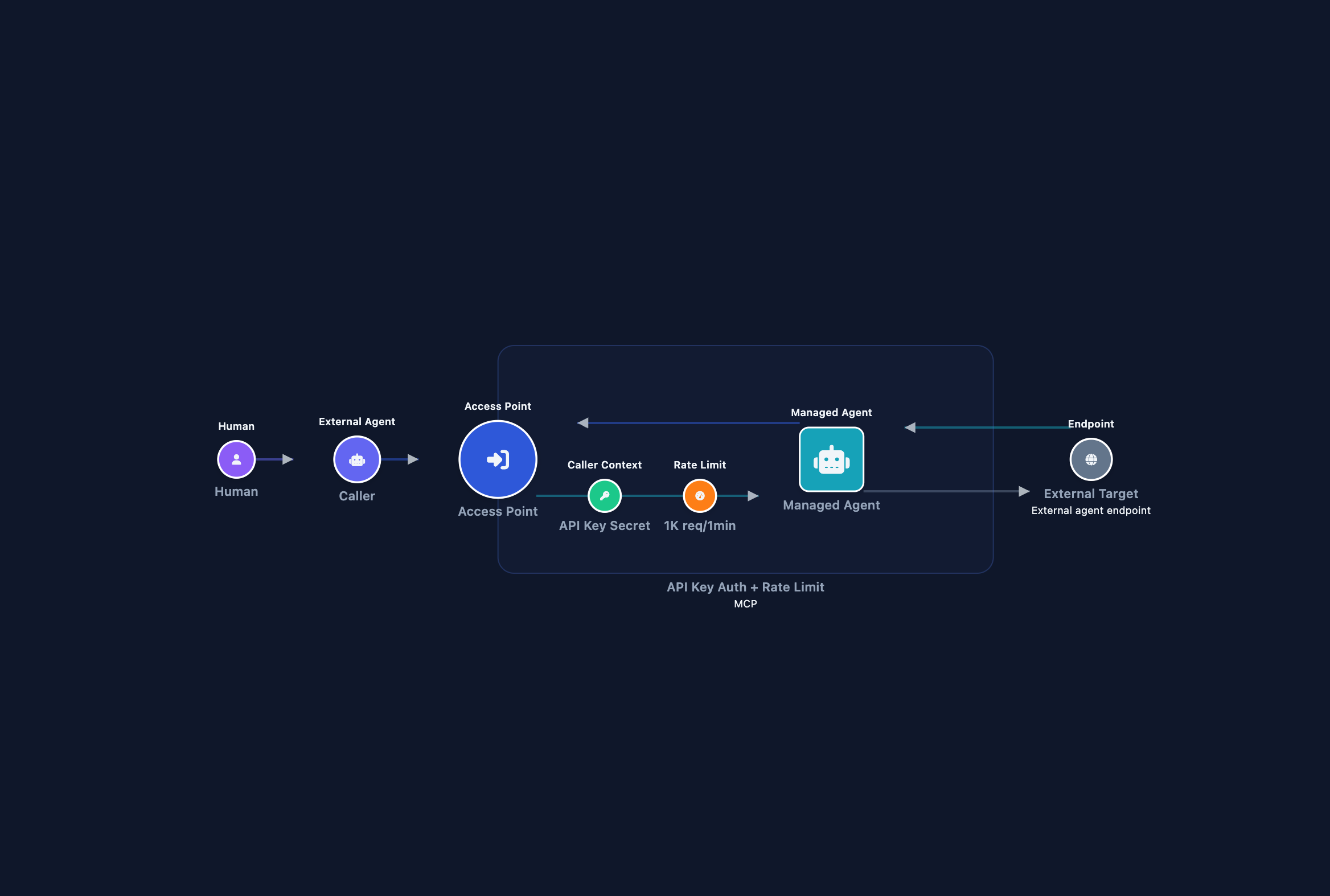

This guide adds two canvas elements to a surface: Caller Context, which enforces an API key on every inbound request, and Rate Limit, which caps requests per time window.

Without Caller Context, any caller who knows the route reaches your managed agent. Without Rate Limit, a single caller can overwhelm it with traffic.

Use this guide when your surface is exposed to external callers and you need to restrict access to authorised callers only. You add both elements from the palette, configure a secret to hold valid key values, and confirm the setup with three targeted curl tests.

Prerequisites

Completed Create your first surface.
You are logged in to the Trust Gateway dashboard with permission to create and edit surfaces.
You have the echo server running locally. Copy the script from Echo server, save it as echo-server.py, and start it with python3 echo-server.py.
A gateway secret that holds the valid API key values. Follow Secrets to create a secret with your chosen key value (for example, my-test-key). Note the secret ID: you will enter it in Step 4.

Steps

Create a surface from a template

Open Surfaces in the dashboard.
Select Add Surface.
In Start a new surface, select your protocol template.
- For an A2A surface, select the A2A Surface Starter template.
- For an MCP surface, select the MCP Surface Starter template.
The template sets the surface protocol. There is no separate protocol picker.
The canvas opens with a hint balloon. The Access Point is pre-configured by the template. The Managed Agent shows a red outline until its target endpoint is set.

Optionally update the surface name in the Surface panel. The name is auto-generated from the template.

Configure the Access Point

Select the Access Point node on the canvas.
In the Listener section, set the following fields.
- Listen Address (Host:Port): select the inbound listener address from the dropdown.
- Channel Prefix: select the path prefix for this gateway (for example, /agents).
- Custom Path: the auto-generated two-word path is ready to use as-is, or type your own path segment. The full composed route is shown above the section as the Channel Route.

Note the Channel Route value: you will use it in the test commands in the Confirm section.

Configure the Managed Agent

Select the Managed Agent node on the canvas.
Set Target Endpoint URL to the URL the gateway should forward authenticated traffic to. For this guide, use http://localhost:8080.

Add Caller Context (API key authentication)

The Caller Context element authenticates inbound callers before their request reaches the managed agent. Without it, anyone who knows the route can call the surface.

In the left palette, find the Caller Context element under the Security & Policy category.
Drag Caller Context onto the canvas and drop it between the Access Point and Managed Agent nodes.
Select the Caller Context node to open its config panel.
In Authentication Method, select API Key (secret store).

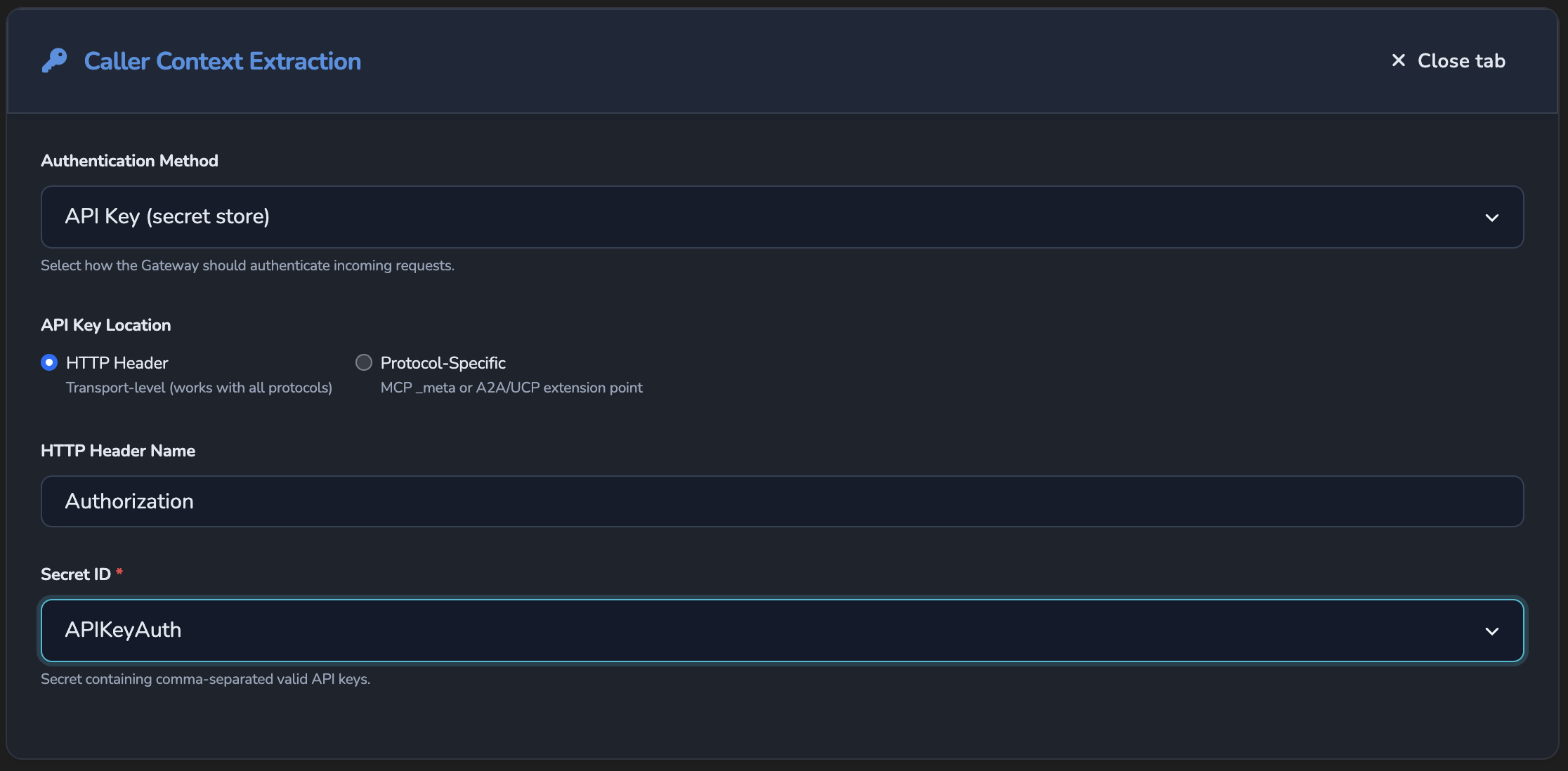

Select Configure… to open the full configuration editor.
In the full editor, confirm or update the following fields.
- HTTP Header Name: the header callers must include in every request. The default value is X-API-Key. Leave it as-is unless you need a different header name.
- Secret ID: enter the ID of the gateway secret you created in Prerequisites. The secret holds the comma-separated list of valid key values.
Close the editor.

Callers that omit the header, or supply a value not in the secret, receive a 401 Unauthorized response. The request never reaches the managed agent.

Add a Rate Limit

The Rate Limit element caps how many requests the surface accepts in a given time window. Requests that exceed the limit receive 429 Too Many Requests.

In the left palette, find Rate Limit under the Enhancements category.
Drag Rate Limit onto the canvas and drop it on the Access Point node or the edge connecting Access Point to Managed Agent.
Select the Rate Limit node to open its config panel.
Under Requests, set the following fields.
- Max requests per window: enter the maximum number of requests to allow in one window. For testing, use 5.
- Window (seconds): enter the window duration in seconds. For testing, use 60.
- Burst allowance (optional): leave empty for now. This allows short spikes above the steady rate when set.

Save the surface

Select the green checkmark button (tooltip: Create surface) or press Cmd+S (macOS) / Ctrl+S (Windows/Linux).

The gateway applies the new configuration immediately through hot reload.

Confirm

Replace <YOUR_GATEWAY_HOST> with your gateway hostname and <CHANNEL_ROUTE> with the Channel Route value noted in Step 2.

These tests confirm the gateway’s authentication and rate-limiting behaviour. The target is the local echo server, which accepts any request and returns 200 OK with a JSON echo of the forwarded request. It is not a real A2A or MCP server. Replace it with your actual agent URL to test end-to-end protocol behaviour.

The request bodies below use A2A format. For MCP surfaces, replace the body with an MCP request such as {"jsonrpc":"2.0","method":"initialize","id":1,"params":{"protocolVersion":"2024-11-05","clientInfo":{"name":"test","version":"1.0"},"capabilities":{}}}.

Test 1: request without an API key should return 401

curl -k -X POST "https://<YOUR_GATEWAY_HOST><CHANNEL_ROUTE>" \
  -H "Content-Type: application/json" \
  -d '{
    "jsonrpc": "2.0",
    "method": "message/send",
    "id": "test-001",
    "params": {
      "message": {
        "role": "user",
        "messageId": "msg-001",
        "parts": [{ "kind": "text", "text": "Hello" }]
      }
    }
  }'

The -k flag disables TLS certificate verification. Use this for local testing only. Remove it in production.

Expected response: 401 Unauthorized. The Caller Context element rejected the request before it reached the managed agent.

Test 2: request with a valid API key should succeed

Replace my-test-key with the actual key value stored in your secret.

curl -k -X POST "https://<YOUR_GATEWAY_HOST><CHANNEL_ROUTE>" \
  -H "Content-Type: application/json" \
  -H "X-API-Key: my-test-key" \
  -d '{
    "jsonrpc": "2.0",
    "method": "message/send",
    "id": "test-002",
    "params": {
      "message": {
        "role": "user",
        "messageId": "msg-002",
        "parts": [{ "kind": "text", "text": "Hello" }]
      }
    }
  }'

The -k flag disables TLS certificate verification. Use this for local testing only. Remove it in production.

Expected response: 200 OK with a JSON body echoed by the local echo server. The echo server terminal shows the full forwarded request, including the X-API-Key header.

Test 3: exceeding the rate limit should return 429

Run the following to send six requests in quick succession. With a limit of 5 per 60 seconds, the sixth request should return 429 Too Many Requests.

for i in 1 2 3 4 5 6; do
  curl -k -s -o /dev/null -w "Request $i: %{http_code}\n" \
    -X POST "https://<YOUR_GATEWAY_HOST><CHANNEL_ROUTE>" \
    -H "Content-Type: application/json" \
    -H "X-API-Key: my-test-key" \
    -d '{"jsonrpc":"2.0","method":"message/send","id":"'$i'","params":{"message":{"role":"user","messageId":"msg-'$i'","parts":[{"kind":"text","text":"test"}]}}}'
done

The -k flag disables TLS certificate verification. Use this for local testing only. Remove it in production.

Expected output:

Request 1: 200
Request 2: 200
Request 3: 200
Request 4: 200
Request 5: 200
Request 6: 429

Open the surface Monitoring tab to see all six requests listed, with the last one marked as rate-limited.

Troubleshooting

Symptom	Likely cause	Fix
Every request returns `401`, even with the API key header.	The key value in the request does not match any value in the secret.	Open the secret in Secrets and confirm the stored value. Check for leading or trailing spaces.
`401` even though the key value is correct.	The HTTP Header Name in the Caller Context element does not match the header sent in the request.	Open the Caller Context fullscreen editor and confirm the HTTP Header Name field value. Update the curl command to use the same header name.
Rate limit is not being enforced; requests above the limit return `200`.	The Rate Limit element was dropped outside the surface boundary or is not connected to the Access Point path.	Remove the Rate Limit element and re-add it by dropping it directly on the Access Point node or the edge between Access Point and Managed Agent. Save and retry.
Rate limit fires immediately on the first request.	Max requests per window is set to `0` or an empty value.	Open the Rate Limit panel and set Max requests per window to a positive integer.
`404 Not Found` on the test request.	The route in the curl command does not match the Channel Route value.	Copy the exact Channel Route value from the Access Point panel and use it in the curl command.
`502 Bad Gateway`.	The target endpoint is unreachable from the gateway host.	Confirm the gateway has outbound internet access, or replace the target endpoint with a reachable internal URL.

Next steps

Use JWT claims to control access to a surface: add Rego policy rules to enforce fine-grained access control beyond API key authentication.
Control MCP tool access with per-tool policies: restrict which MCP tools are accessible per caller (MCP surfaces only).
OPA policies: understand how Rego rules integrate with the gateway surface pipeline.
